FULLY OVERHAULED

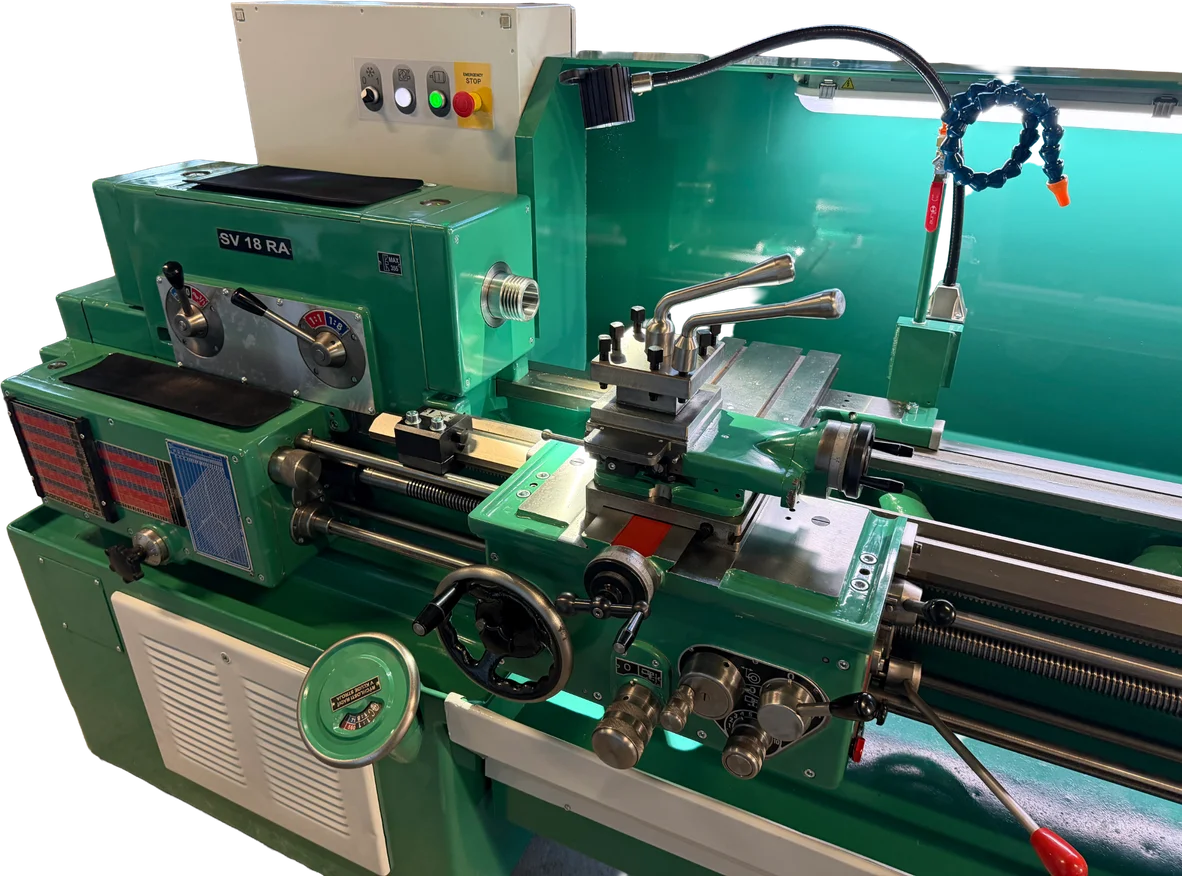

TOS SV 18RA
A proven universal lathe for workshops and production.
A universal centre lathe overhauled by STAP. For precision turning of small and medium-sized components, one-off production and maintenance work.
Send an enquiry↗Current availability, configuration and price are confirmed on enquiry.
TOS SV 18RA
Technical specifications
Model dimensions and technical data.
| Swing over bed | 380 mm |
|---|---|
| Swing over cross slide | 215 mm |
| Distance between centres | 1 000 mm |
| Spindle speed range | 14–2 800 min⁻¹ |
| Spindle bore | 41 mm |
| Spindle nose | M68 |
| Maximum tool shank size | 22 × 22 mm |
| Main motor power | 6 kW |
| Machine weight | 1 800 kg |
01 / CONFIGURATION
Standard equipment
- Chuck guard Ø 250 mm
- Metric configuration
- M68 spindle nose, Ø 41 mm bore
- Four-way tool post
- Electrical cabinet on the headstock
- LED work light
- Longitudinal micrometer stop
- Colour RAL 6000 / 1003
- Change gear set for thread cutting
- Printed operating manual
02 / TO YOUR REQUIREMENTS
Optional equipment
- Limat two-axis digital readout
- Energy chain supply to the carriage
- Fixed rear guard with LED lighting
- Working area guard
- Fixed steady rest
- Travelling steady rest
The specific equipment and overhaul scope will be confirmed on enquiry.
FULLY OVERHAULED
Explore the overhaul →From mechanical repairs to final inspection.
Restoring a lathe takes more than a fresh coat of paint. It starts with dismantling and ends with geometry checks, testing and handover.
Condition, documentation and delivery
- Condition and availability
- Overhauled by STAP. Current availability and the specific equipment will be confirmed in your quotation.
- Documentation
- The SV 18RA overhaul scope includes an operating manual, accuracy report and electrical inspection report. Documentation will be confirmed for the individual machine.
- Warranty, transport and installation
- Warranty terms, transport and installation options will be confirmed in your quotation.
